Music Stand for Salmagundi Club of New York
 An exposed view of the DAAM showing the spring loaded pull pin and the angle rotation disk.
I've started fabrication of the brass pieces. The Desk Angle Adjustment Mechanisms are first.

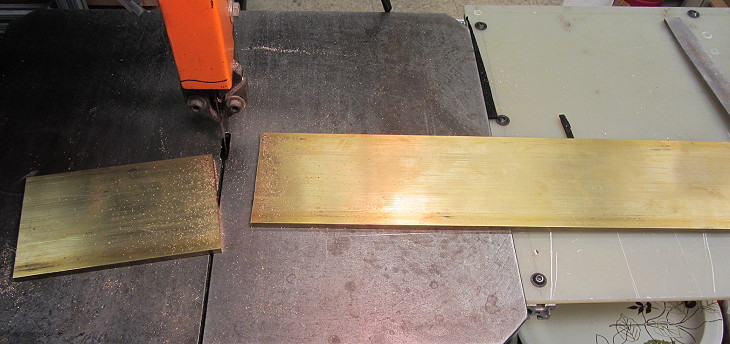

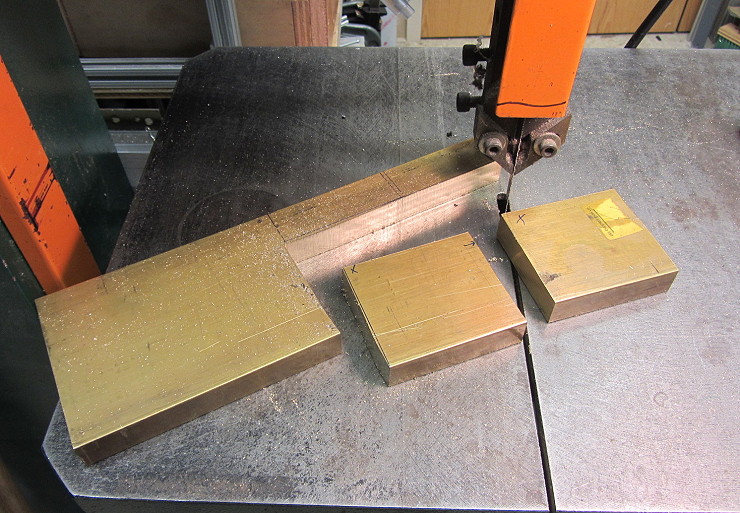

A large piece of brass will yield several pieces. These are the two DAAM's

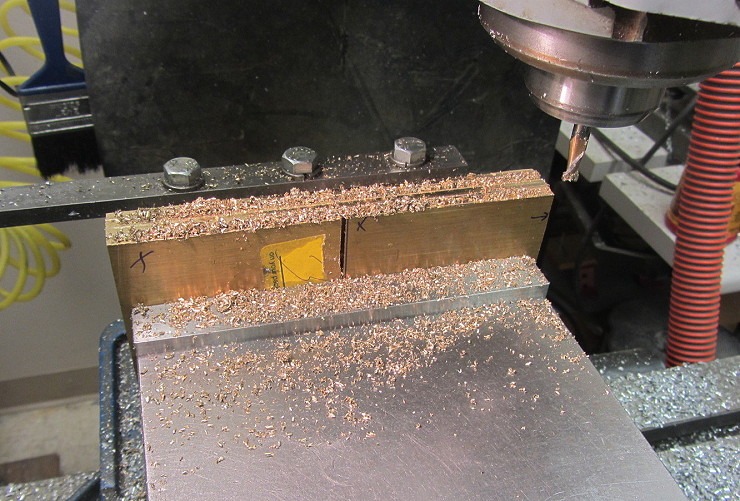

Piece are squared up in the milling machine.

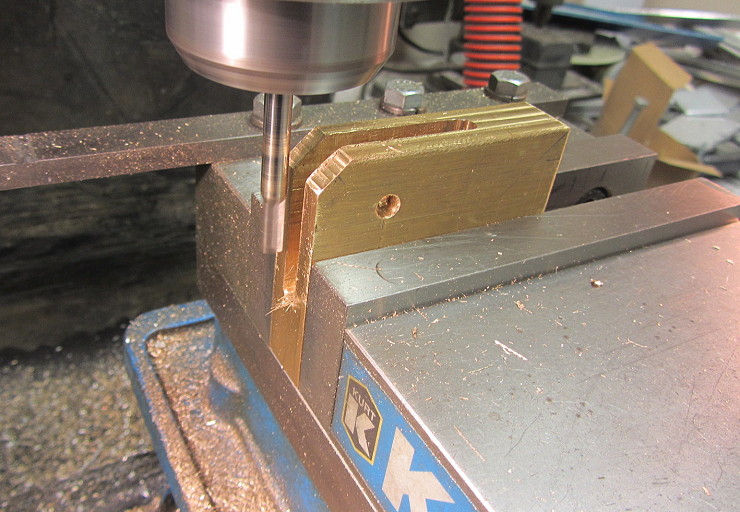

Milling the interior pockets.
Now I cut and mill the angle rotation disk.

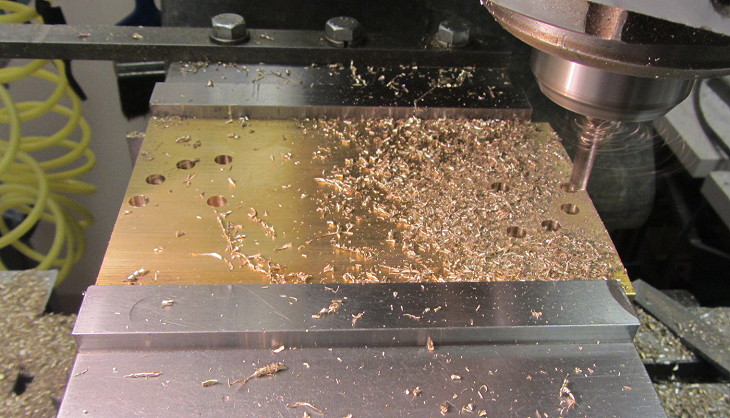

The positioning holes being drilled.

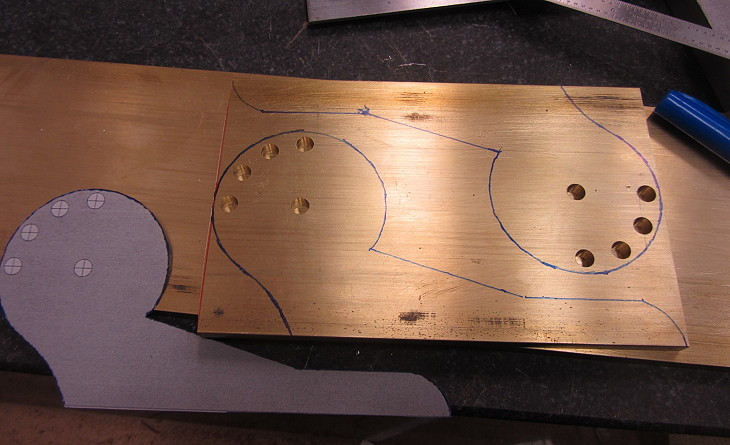

The disks will be cut out on this profile/

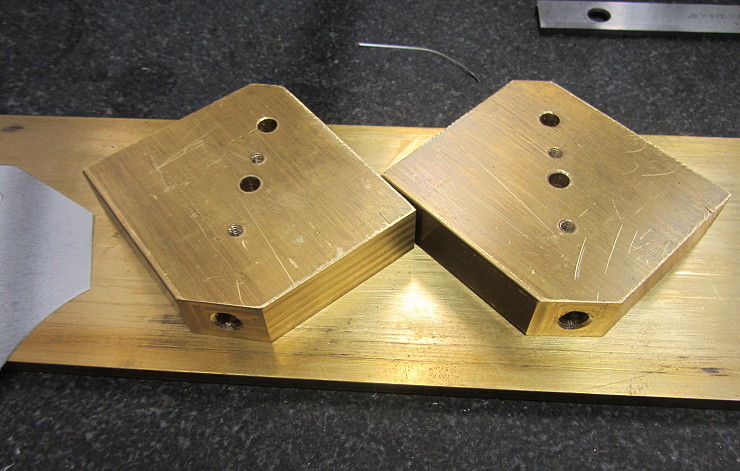

Here are the final parts for each DAAM
The main Block is connected to the Rising Pole with a 1/2 steel rod. The rod is fixed to each piece with a 1/4-20  set screw.

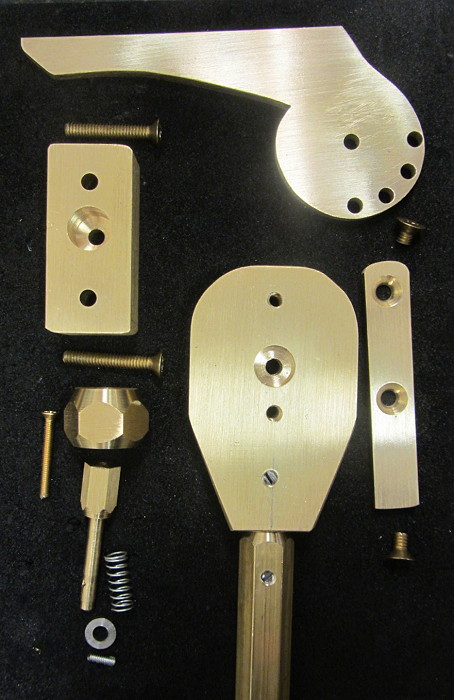

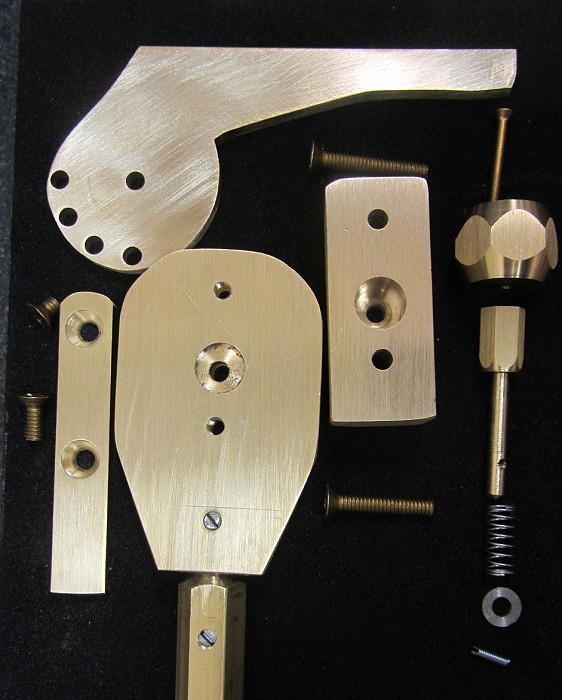

Here are the parts to the Spring Load Pull Pin and Pull Pin Mounting Block.
The Pull Pin Block houses a spring loaded brass Pull Pin.

The Pull Pin Block is then mounted to the main block.

The rotation angled disk is inserted into the groove of the main block and rotates on the upper 1/4-20 mounting screw.
The Outside Knob is attached to the Pull Pin.
A Cover Plate is mounted to the opposite side of the Main Block.
Vertical-----0 degrees.
The DAAM are designed to operate in four different fixed positions.
30 degrees.
60 degrees.
Horizontal---90 degrees.
